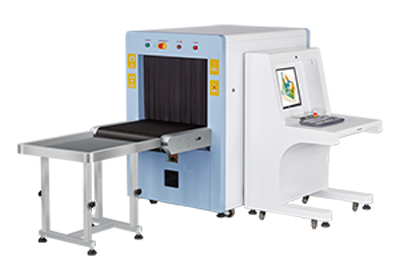

XLD-6040 X-ray

Product parameters:
Tunnel size:600(L)*400(W)mm
Conveyor Speed(m/s):0.2
Conveyor Max Load(kgs):170
Conveyor height(mm):695
Unit weight:475kgs
Unit size:2195(L)*902(W)*1362.5(H) mm
Penetration:Typical 32mm steel, guarantee
Description

Image Enhancement:

1-64times enlargement continuity, Color/BW, negative,high/lowpenetration, organic /inorganic

Stripping, general enhancement, and pseudo color,etc.

Image Archive:

Up to 50,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP, XF, PNG, TIFF, GIF six formats.

Other Functions:

Time/date display, counters, user management, system-on/X-ray-on timers, power on self test,

built-in diagnostic facilities, dual-direction scanning, system log, system standby and

stimulant training, ADS etc.

Product highlights

* Multilingual operation * Automatic built in test and self diagnosis

* Secure access Key * Continuous working 10000 hours above

* Threat alert and material classification

* International standard configuration: Japan Hammatsu detection and UK Sens-tech board

* Network‐Ready * Energy saving design

* One key turn off * Drugs and explosives inspection

* Indication of the date and time
