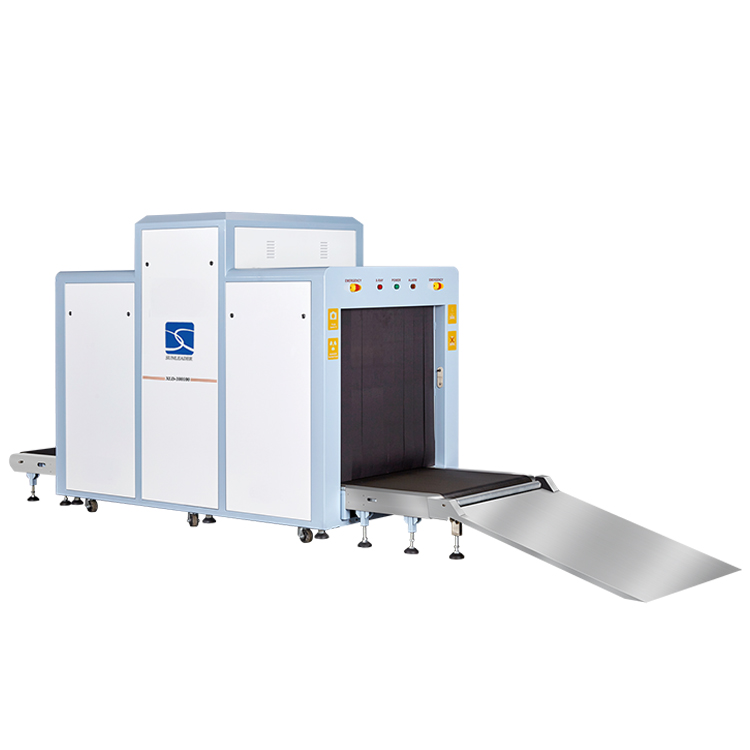

| Item No. | XLD-100100 X-ray baggage machine |
| Manufacturer | Shenzhen Xinlidahong Tech Co., Ltd |
| Origin | Shenzhen, China |
| Tunnel size | 尺寸：1000mm（W）×1000mm（H） |
| Beam direction | Bottom-up |
| Working voltage | 220 VAC(+10%～-15%)，50±3HZ |
| Power consumption | 1.4KVA |
| Conveyor speed | 0.2m/s |
| X-ray source | 140kV，0.5mA |
| Leakage | <2mSv /h (0.2mR/h) 5cm away from the shell, typical value <1mSv /h (0.1mR/h) |
| Standard leak dose | In accordance with GB15208-94 protection standards |
| Maximum load | 1500Kg |
| Spatial Resolution | Æ0.10mm metal wire |
| Penetration | 40mm steel plate |
| Single X-ray radiation dose | 1mSv /h |
| Film safety | Ensure the safety of the high-speed film (ASA/ISO 1600). |
| Working Temperature | 0℃～45℃ |
| Storage Temperature | -40℃～70℃ |
| Relative humidity | 20%～95% (no condensation) |
| Cooling/working cycle | sealed oil cooling /100% |
| X-ray sensor | multi energy L photodiode array detector |
| Image greyscale | 4096（12 bit） |
| Equipment ground | Th device provides a good grounding terminal. |
| Host noise | 60dB(A) |

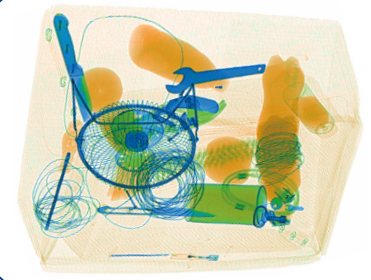

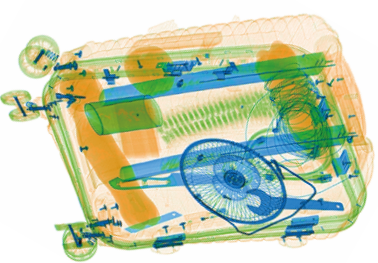

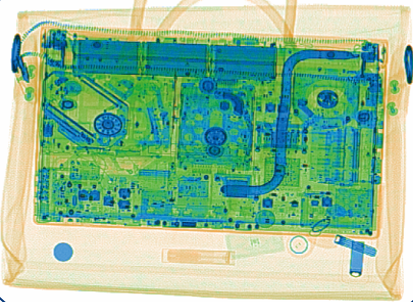

| Image display | color / black, pseudo-color, edge boost up. image boost up: high penetration, image pullback(20pcs), alarm function, organic matter eliminating,inorganic matter eliminating, picture inversion, saturation scanning, image saving, image search, additional image display box |
| Scanning of images | Scanning brightness of black and white images, color image saturation scanning, image blocking. |
| Image magnification | 1-9 selective zones, amplificaton of 2，4，8，16 times. |
| Image storage | Real-time storing of 10000PCS of images, with image transfer function |
| Other functions | Date and time display, operator identification number, device dumber, automatical image inserting, working status, image micro-shrink display, Operator identify code, black and white / color image switching, baggage counting & zero clearing, urgently stop and power-on self-diagnose function. X-ray equipment scroll direction change, network interface: system operation and X-ray emission timing, Automatic maintenance tips. |
| Display | 19in rectangular plane color display 1280×1024 < 0.28 dot pitch. Field frequency≥75Hz MAX: 100Hz, flicker free, 22 grayscale, in line with MPRII and TCO95 standards. Automatic protection screen. |
| No matter how to put the goods, they are all perspective, without blind spots or dead angles. | |
| With lead plate shielding in shell, with lead shielding curtains at inlet and outlet. | |
| X-ray indicator light and emergency stop button at inlet and outlet. | |
